fischer UltraCut FBS II 12 x 130 70/55/30 US

Name: fischer UltraCut FBS II 12 x 130 70/55/30 US
Brand: fischer

Product variants

CAD Data

Download of image data

Top Features

With up to 3 embedment depths, it allows for the same screw to be used for different component thicknesses.
The special saw tooth geometry enables fast cutting into the concrete.
The approved adjustment for the concrete screws allows the screw to be unscrewed twice to align the attached part, and then to tighten the screw again.
The fischer concrete screws FBS II 6-10 offer the innovative possibility for the ETA compliant application in masonry. This grants high security not only in concrete but also in many other applications in other substrates.

Art.-Nr. 058000
FIS AM
Art.-Nr. 537202
FUP 12
Art.-Nr. 563337
FIS DM S Pro
Art.-Nr. 538580
Socket 1/2" size 17
Art.-Nr. 567792
Blow-out pump AB G
Art.-Nr. 549936
Quattric II 12/160/215 S
Art.-Nr. 538459
FFD 30 x 14 x 6

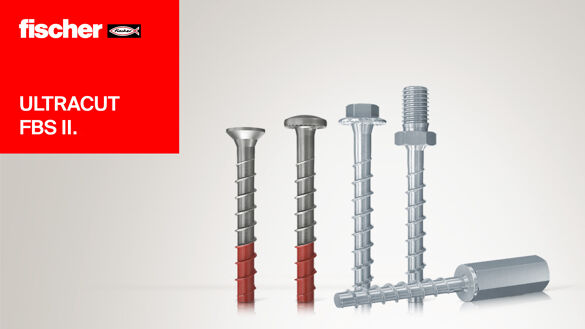

The high-performance concrete screw for absolute installation ease.

Advantages

With up to 3 embedment depths, the UltraCut FBS II US allows for the same screw to be used for different component thicknesses.
The special saw tooth geometry enables fast cutting into the concrete.
Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
Expansion-free anchoring (undercut) allows for lowest edge- and axial spacings.
The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2.
The approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again.
The checking gauge allows for reuse in temporary fixings (e.g. inclined supports) covered by the national approval.
The concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel CP and stainless steel R has an ETA for bricks of clay (EN771-1), solid sand-lime brick (EN771-2) and perforated sand-lime brick (EN771-2) for a flexible use in different substrates.
The installation of the concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel and stainless steel R in masonry brick can be made in the joints or in plastered substrates also in groups.

The fischer concrete screw UltraCut FBS II US is a powerful anchoring solution with top installation comfort. The concrete screw with its pressed-on washer is ideal for slot fixations and the anchoring of wooden constructions as well as beams and sills. The European Technical Approval for cracked concrete and non-cracked concrete as well as for seismic loads and classification into fire resistance class R 120 guarantee even more safety. The saw tooth geometry enables a quick and easy installation. No drill hole cleaning is required for installation in ceilings and floors. The expansion-free anchorage system enables low edge and axial spacings.

Applications

Guard rails
Consoles/Base plates
Metal profiles
Shelving systems
Protection barriers
Results / beam anchors
Temporary anchoring, e.g. of building site equipment
Shuttering props
Reinforcement of bridges
Rehabilitation of old and ailing buildings
Rehabilitation of car parks

Building materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked
Reinforcement of existing concrete structures
Bricks of clay (EN771-1) - only for diameter 8 and 10
Solid sand-lime brick (EN771-2) - only for diameter 8 and 10
Perforated sand-lime brick (EN771-2) - only for diameter 8 and 10

Suitable for:

Concrete C12/15
Solid building materials
Masonry with a dense structure

You can find detailed information on building materials in the registration document.

Approvals

ETA-15/0352
ETA-20/0321
DoP No. 0185
DoP No. 0227
DoP No. 0225
UKTA-0836-23/6750
Z-21.8-2049

Functionality

The UltraCut FBS II is recommended for the push-through installation.
Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
We recommend using a tangential impact screwdriver with a suitable impact screwdriver socket or an internal TX drive.
The screw is installed correctly when the screw head sits flush on the fixture and cannot be screwed in deeper (visual setting control).

View assembly instructions as PDF

Mounting Strip 1 Picture

1 / 9

Mounting Strip 2 Picture

1 / 3

Mounting Strip 3 Picture

1 / 2

ETA Certification Document

pdf, ETA-15/0352

European Technical Assessment for fischer concrete screw ULTRACUT FBS II - Mechanical fasteners for use in concrete

Created on 05/10/2020

DOP - Declaration of Performance

pdf, DoP No. 0227

Declaration of Performance for fischer concrete screw ULTRACUT FBS II (Mechanical anchor for use in concrete)

Created on 19/10/2020

ETA Certification Document

pdf, ETA-20/0321

European Technical Assessment for fischer concrete screw ULTRACUT FBS II - Connector for Strengthening of existing concrete structures by concrete overlay

Created on 19/06/2020

DOP - Declaration of Performance

pdf, DoP No. 0225

Declaration of Performance for fischer concrete screw ULTRACUT FBS II (Mechanical fastener for use in concrete)

Created on 03/07/2020

DOP - Declaration of Performance

pdf, DoP No. 0185

Declaration of Performance for fischer concrete screw ULTRACUT FBS II (Mechanical fastener for use in concrete)

Created on 27/11/2020

UK Technical Assessment

pdf, UKTA-0836-23/6750

BBA - Designated according to The Construction Products (Amendment etc.) (EU Exit) Regulations 2020 - fischer concrete screw ULTRACUT FBS II - Mechanical fasteners for use in concrete

Created on 09/05/2023

ETA-approval
DIBt-approval
Drill diameter( d₀ )	12 mm
Min. drill hole depth for through fixings( h₂ )	140 mm
Nominal embedment depth / thickness of fixture( h_nom1 / t_fix )	60 / 70 mm
Nominal embedment depth / thickness of fixture( h_nom2 / t_fix )	75 / 55 mm
Nominal embedment depth / thickness of fixture( h_nom3 / t_fix )	100 / 30 mm
Drive	SW 17
Packaging	Folding box
Amount	20 pcs
GTIN (EAN-Code)	4048962251555

fischer UltraCut FBS II 12 x 130 70/55/30 US
