Art.-No. 568860

GTIN (EAN-Code): 4048962491333

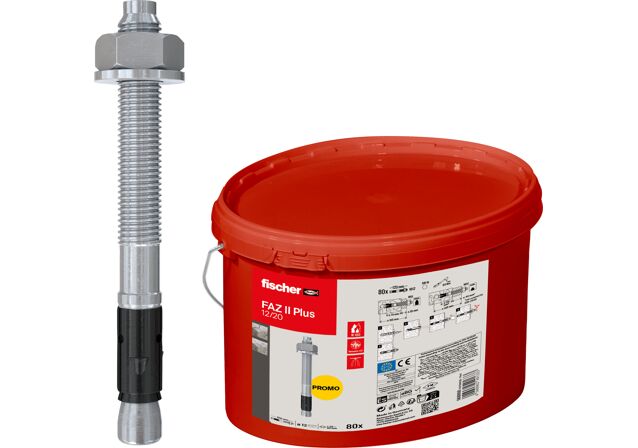

fischer bolt anchor FAZ II Plus 12/20 bucket

Name: fischer bolt anchor FAZ II Plus 12/20 bucket
Brand: fischer

Product variants

CAD Data

Download of image data

Top Features

Quick and easy assembly without the need for drill hole cleaning (M8-M24).
Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs.
Millimeter accurate adjustment to the loads due to the variable anchoring depths.
Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD.

For highest demands. Powerful and flexible.

Advantages

Quick and easier assembly without the need for drill hole cleaning (M8-M24).
Numerous approval certificates for different substrate materials (concrete C12/15-C80/95, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
The new ETA confirms the use of the FAZ II Plus for dynamic loads for diameters M16-M24.
The fast installation process of the FAZ II Plus provides an efficient fixing solution for dynamic applications with low load cycles (M16-24) with an immediately loadable fixing point.
The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation.

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.

Applications

Steel constructions
Guard rails
Consoles
Ladders
Cable trays
Machines
Staircases
Façades
Timber constructions

Building materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Suitable for:

Concrete C12/15 (classification available)
Concrete C80/95 (classification available)
Steel fiber concrete (classification available)
Solid sand-lime brick (classification available)

You can find detailed information on building materials in the registration document.

Approvals

ETA-19/0520
DoP No. 0334
3023222
ESR-2948
BZS D 23-607

Functionality

The FAZ II Plus is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.
When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
The anchor is set in line with the approval once the preset installation torque is achieved.
In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 6

Mounting Strip 3 Picture

1 / 8

ETA-approval
ICC-approval
Seismic-Approval	C1 / C2
Drill diameter( d₀ )	12 mm
Min. drill hole depth for through fixings( h₂ )	110 mm
Max. usable length h_ef,stand/h_ef,min.( t_fix )	20 / 40 mm
Anchor length( l )	120 mm
Thread( ø x length )	M12 x 71 mm
Width across nut	19 mm
Installation torque( T_inst )	60 Nm
Contents	80 x FAZ II Plus 12/20

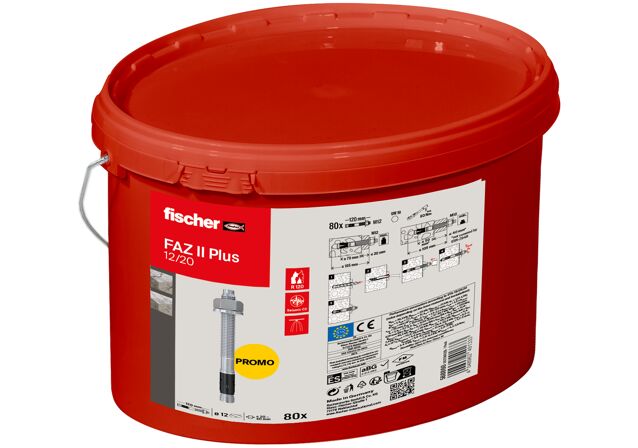

Packaging	Bucket
Amount	80 pcs
GTIN (EAN-Code)	4048962491333
