Art.-No. 577364

GTIN (EAN-Code): 4048962559446

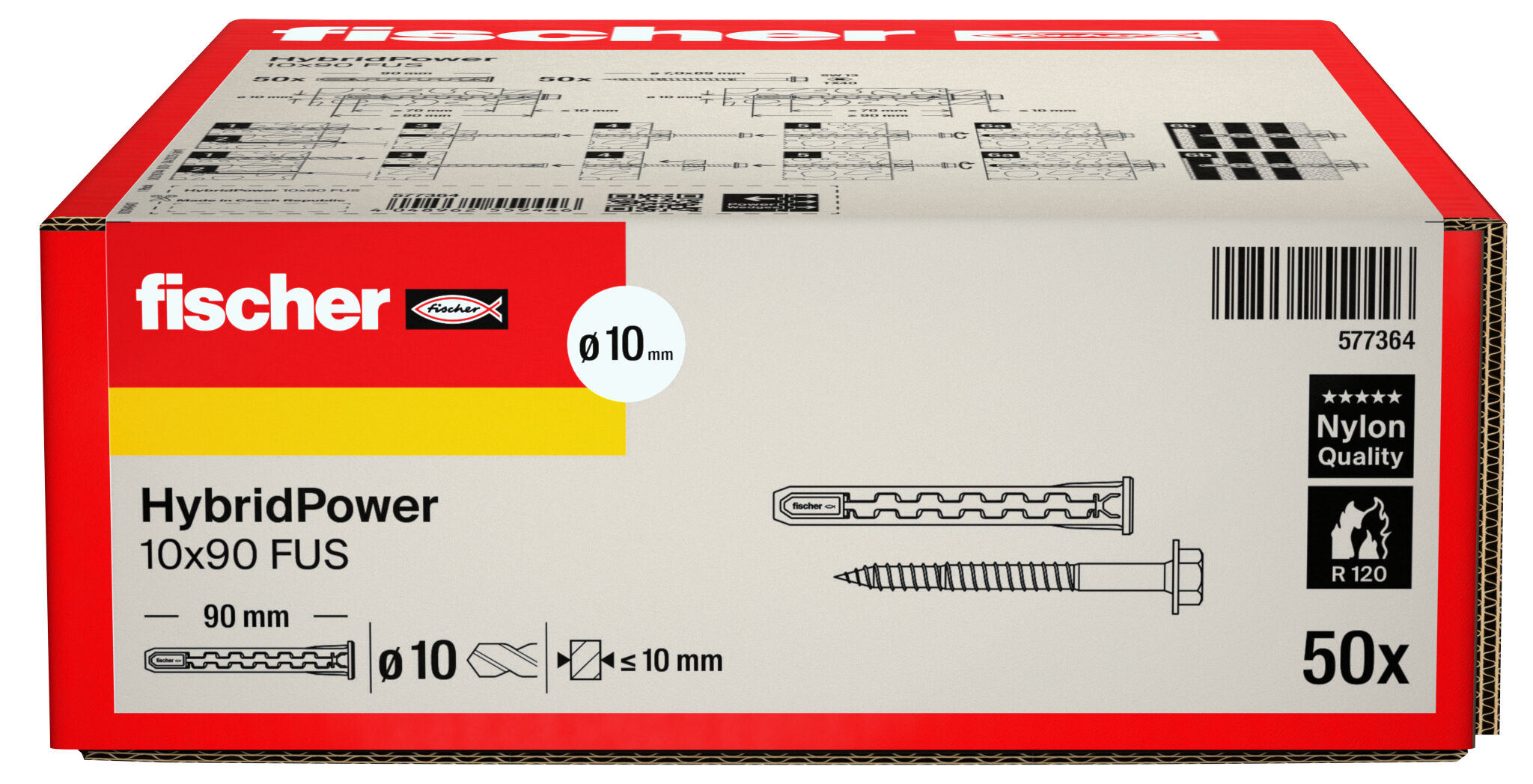

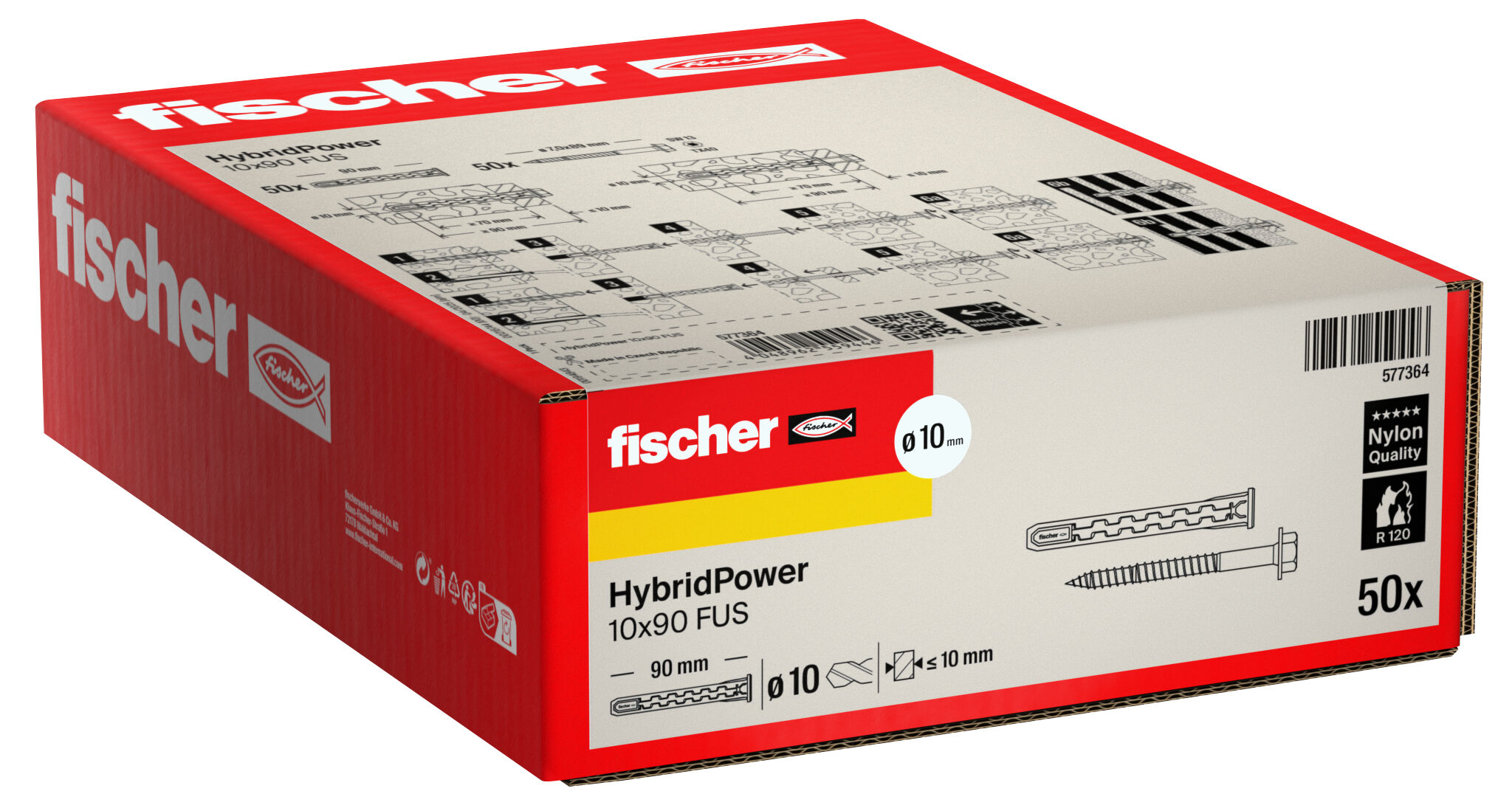

fischer HybridPower 10 x 90 FUS

Name: fischer HybridPower 10 x 90 FUS
Brand: fischer

Product variants

Download of image data

Top Features

Safe like steel, easy to install like plastic.
The plastic casing of the plug enables quick and easy installation without a setting tools.
The metal part guarantees maximum load-bearing capacity.
Universally applicable: Suitable for all building materials and a wide range of applications.
Safe in the event of fire: Thanks to the metal component, the plug also holds under the influence of fire.

Art.-Nr. 549922
Quattric II 10/100/165 S
Art.-Nr. 561647
D-U Hex 10.0 x 90/150

HybridPower. Plastic meets steel. Strong, safe & simple.

Advantages

The HybridPower can be installed quickly and easily, just like a conventional plastic plug. It can be inserted by hand and no special tools or torque wrench are required.
Thanks to the metal component, the plug also holds heavy loads and offers a high load-bearing capacity and additional safety.
The HybridPower is universally applicable and can be used in solid and hollow building materials. The flexible plastic expands in any building material.
The metal component also withstands fire and offers certified safety in case of fire.
The included screw offers an appealing and straight finish to the fixing point, without protruding threaded rod.
The fixing point can be released at any time by simply removing the screw.

The fischer HybridPower combines the advantages of a classic plastic plug with the security of a steel anchor. Thanks to the combination of the two materials, the HybridPower is set like a classic plug and can be used in all building materials. At the same time, it offers high load-bearing capacities and secure anchoring, even in the event of fire. The range is suitable for metal and timber attachments up to 30 mm. The plug can be used for push-through installation.

Applications

TV mountings
Pull-up bars
Shelves
Kitchen hanging cabinets
Wardrobes
Lighting
Wooden slats
Metal brackets
Metal supports
Air conditioners
Plumbing and heating fixings

Building materials

Concrete
Solid sand-lime brick
Solid brick
Solid block made from lightweight and normal weight concrete
Vertically perforated brick
Perforated sand-lime brick
Hollow blocks made from lightweight concrete
Aerated concrete

You can find detailed information on building materials in the registration document.

Approvals

25-005-2(0)

Functionality

The HybridPower is suitable for push-through installation.
The plug is pushed directly into the drill hole by hand or with a few light hammer blows and then expands by screwing the screw into the building material.
The metal power wedges interlock with the building material for high load-bearing capacities.
Recommended for fixing of metal constructions.
Countersunk head screws are recommended for timber constructions.

Mounting Strip 1 Picture

1 / 6

Mounting Strip 2 Picture

1 / 6

Mounting Strip 3 Picture

1 / 6

Mounting Strip 4 Picture

1 / 6

Drill diameter( d₀ )	10 mm
Anchor length( l )	90 mm
Min. drill hole depth for through fixings( h₂ )	90 mm
Screw dimension( d_s x l_s )	7.0 x 89 mm
Min. drill hole depth( h₁ )	90 mm
Min. effect. anchorage depth( h_ef )	70 mm
Max. fixture thickness( t_fix )	10 mm
Drive	TX40 / SW 13
Width across nut	13 mm
Amount	50 pcs
Packaging	Folding box
GTIN (EAN-Code)	4048962559446
