Art.-No. 552360

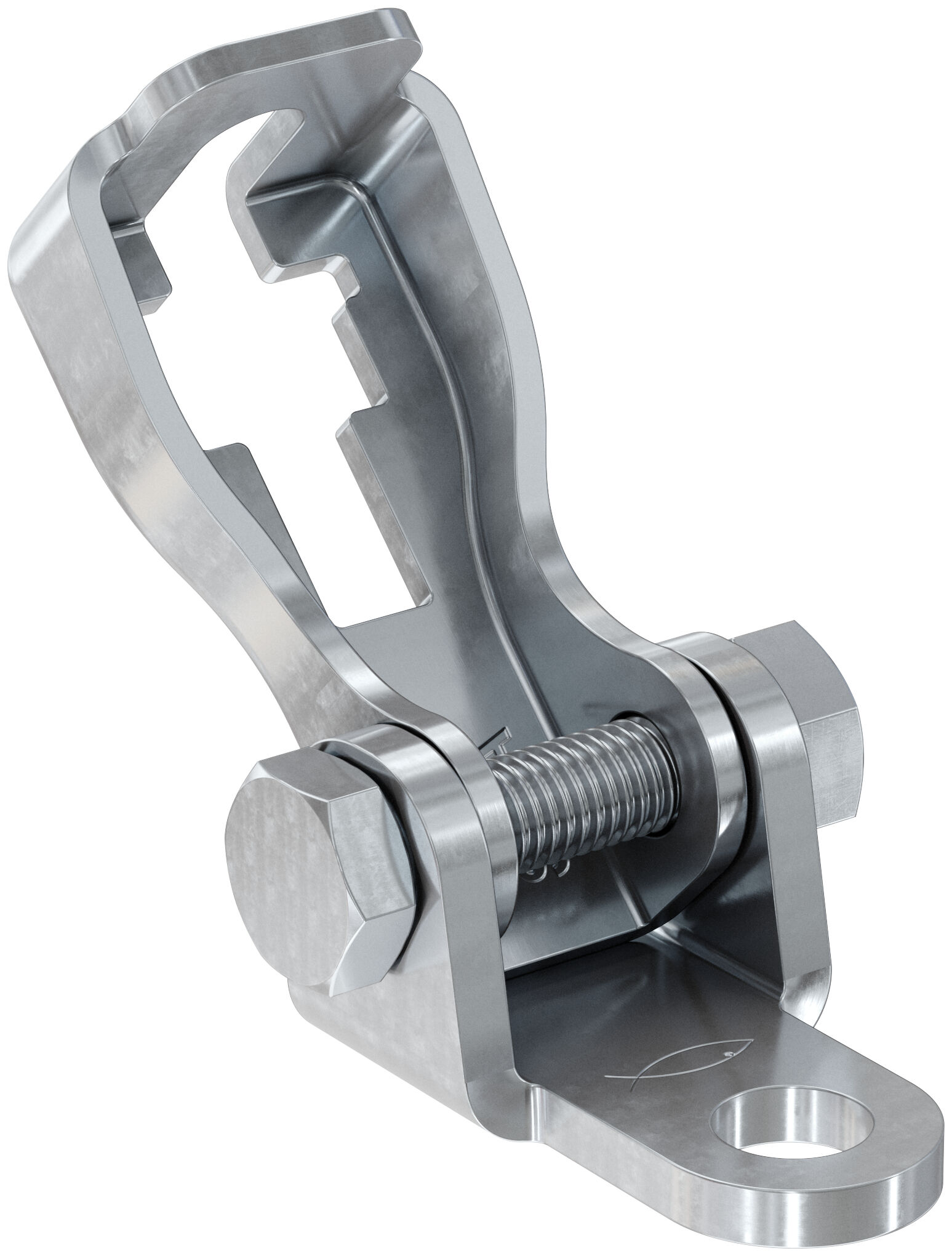

fischer Threaded rod brace connector S-VA

Top Features

The design of the threaded rod brace connector S-VA allows a variable fixation at angles between 30° and 65° for a flexible adaptation to new and already existing construction.
The design of the bracing element allows easy and quick insertion of a pre-mounted threaded rod with nut.
The geometry of the bracing element guarantees a centred load transmission for secure fixing.

Threaded rod brace connector S-VA with maximum installation flexibility for seismic bracing with threaded rods.

Advantages

The design of the threaded rod brace connector S-VA allows a variable fixation at angles between 30° and 60° for a flexible adaptation to new and already existing construction.
The design of the bracing element allows easy and quick insertion of a pre-mounted threaded rod with nut.
The possibility to mount two bracing elements on top of each other offers the option to clamp the same point in different directions.

The threaded rod brace connector S-VA allows the bracing of suspended threaded rods and framework constructions with threaded rods. The holding fixture of the bracing element can be used to quickly insert the threaded rod with pre-mounted nut. To provide additional safety, two bracing elements can be mounted on top of each other and brace the same point in multiple directions.

Properties

Material bracket: steel S275JR (material no. 1.0044) acc. to DIN EN 10025-2
Material supporting plate: steel S355MC (material no. 1.0976) acc. to DIN EN 10149-2
Screw: M10x45, strength class 8.8, electro zinc-plated
Nut: M10, strength class 8, electro zinc-plated

Amount	10 pcs.
GTIN (EAN-Code)	8001132098608
