Art.-No. 547829

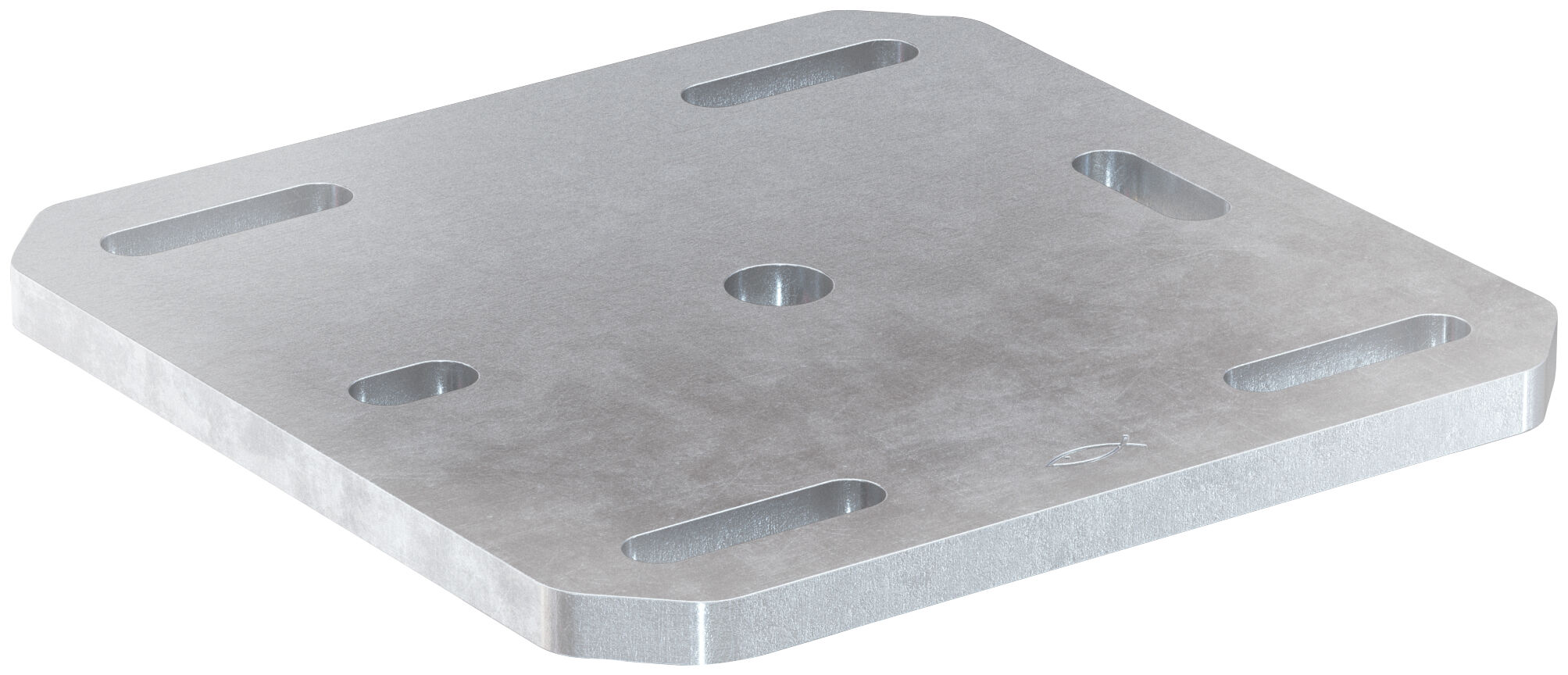

fischer Base plate FMSF BP S

Top Features

The clever design, and size graduations of the FMSF BP base plates, offer optimum fixing ensuring and secure hold.
The FMSF BP base plate is identical in construction to the base plates of the FMSF saddle flanges and enables simple connection by means of threaded rods for secure mounting on steel beams.

Base plate FMSF BP - optimum connection and fastening saddle flansh and cantilever to steel- and concrete beams

Advantages

The clever design and size graduations of the FMSF BP base plates offer optimum fixing ensuring and secure hold.
The FMSF BP base plate is identical in construction to the base plates of the FMSF saddle flanges and enables simple connection by means of threaded rods for secure mounting on steel beams.

fischer base plates are optimal connectors from channel to channel as well as channel to substrate or steel work. The connection to the FMP massive profile is made throughout with the fischer FMHB hammer-head push connector or through beam clamps and anchors to the substrate. The hot-dip galvanised version with high layer thickness is suitable for outdoor installations and in corrosive environments.

Properties

Material: steel S235JR (material no. 1.0038) acc. to DIN EN 10025-2
Zinc plating: hot-dip galvanised

Accessories

FMBC M12

Length ( l )	230 mm
For steel beam width	100 - 160 mm
Width ( B )	230 mm
Thickness ( S )	12 mm
Amount	1 pcs.
GTIN (EAN-Code)	4048962338942
