Art.-No. 557375
GTIN (EAN-Code): 4048962400090

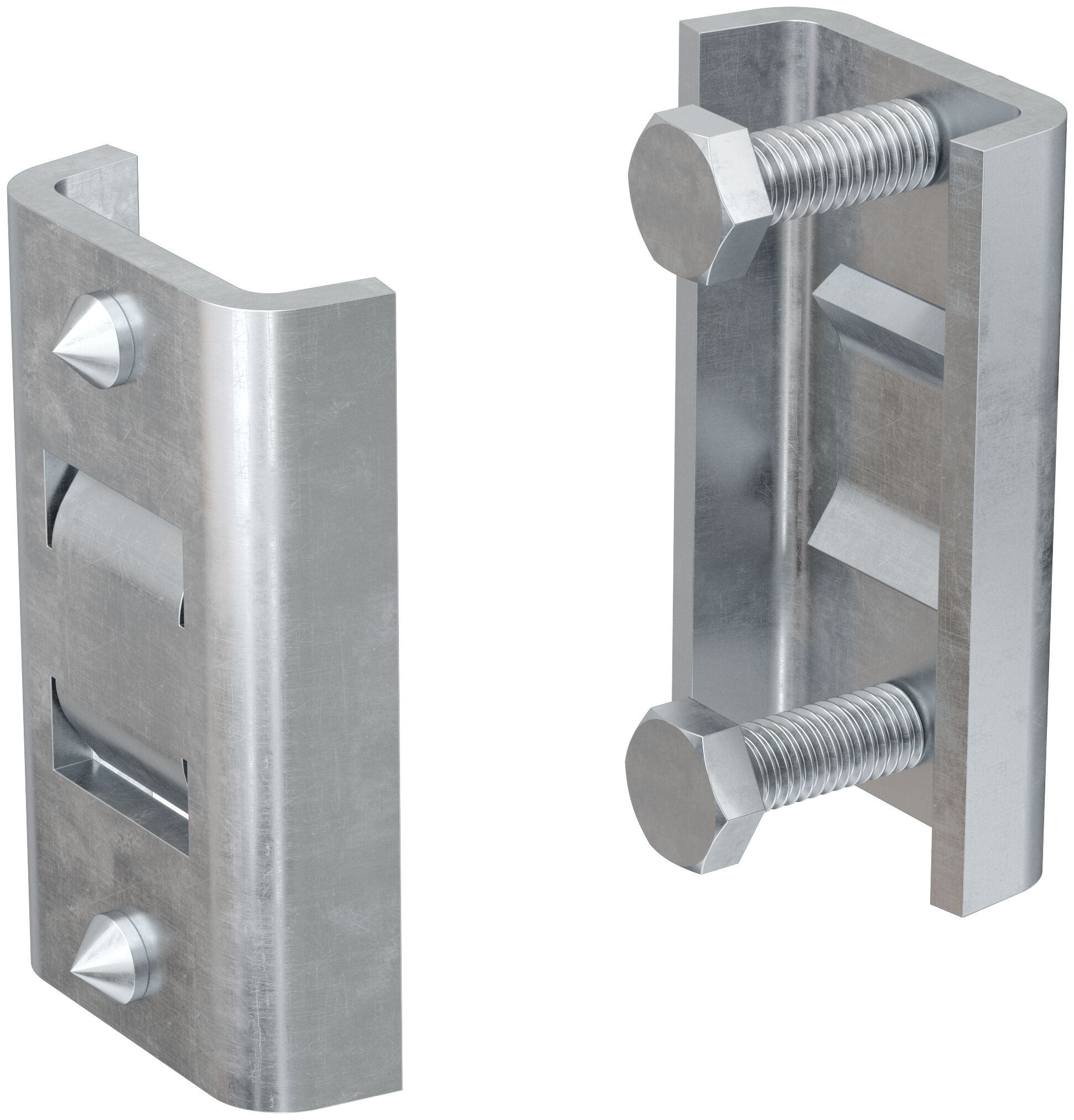

fischer Beam clamp FHBC
Product variants
CAD Data
Download of image data
Top Features
Easy installation of FUS channels to H-beams - without drilling.
Buy now
Buy now
The advantages / Product description
FHBC beam clamp - Beam clamp for the installation of FUS channels on steel girders
Advantages
Easy installation of FUS profile to the flanges of steel girders.
The FHBC allows for the installation of FUS channels on steel girders without drilling.
The fischer beam Clamp FHBC is used for mounting FUS profile rails on steel girders.
Properties
Material: steel S235JR (material no. 1.0037) acc. to DIN EN 10025 (74074882)
Zinc plating: hot-dip galvanised (74083471)
Application and approval
Applications
For installing FUS profile channels between the flanges on steel girders and U-profiles
Suitable for FUS channels FUS 41
For use in dry interior areas
Assembly instruction
Functionality
Mounting Strip 1 Picture
1
/ 4
1
2
3
4
Technical data
Width
(
B
)
55
mm
Length
(
L
)
90
mm
Drive
SW 17
Max. recom. static load (centr. tension)
(
N
rec
)
3
kN
Installation torque
(
T
inst
)
22
Nm
Amount
10
pcs
GTIN (EAN-Code)
4048962400090
Documents for download
Sales materials
Marketing Documents
pdf,
Catalog pages beam clamp FHBC hdg
