FMS - fischer fixings

Your advantages at a glance:

The clearly arranged product range of profiles and construction elements enables on-site assembly without prefabrication and thus considerably reduces costs and time.

The static software reliably and securely supports plannings and calculations of all types of constructions on basis of valid standards.

The construction with the fischer maasive channel system FMS also generates a fixing basis for dynamic loads and makes the system universally applicable.

The massive profiles FMP as square hollow profiles reduce the weight compared to other conventional steel constructions and enable an easy handling on construction site.

To the product online catalogue

FMS

fischer massive channel system FMS

Applications

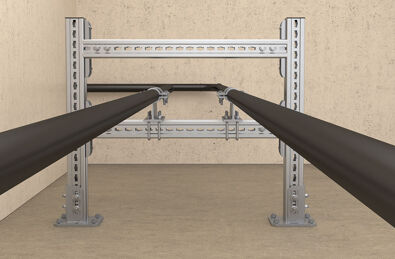

Frame construction standing

With mounting bracket FMA 90, 120 or 160, fits massive profiles FMP 90, 120 and 160

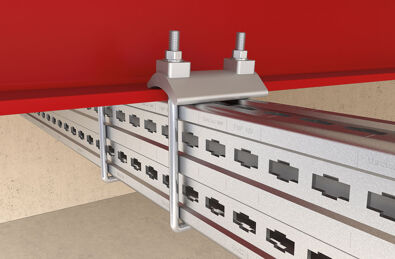

Fastening rails to steel constructions

With clamp supports FMBC 90, 120 and 160, fits massive profiles FMP 90, 120 and 160

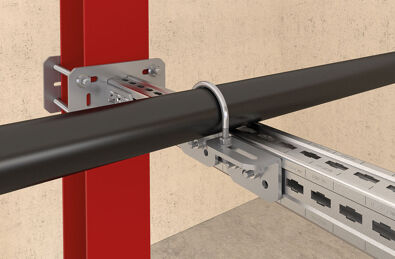

Fastening to the steel construction

With base plates – FMS Saddle flanshes and FMBP base plates

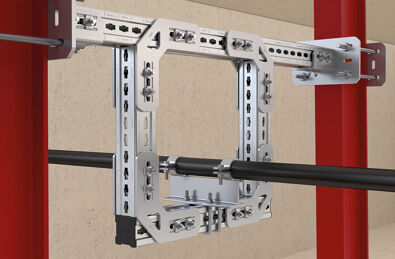

Hanging frame construction

With two mounting brackets each FMFF 90°, fits all massive profiles FMP 90, 120 and 160

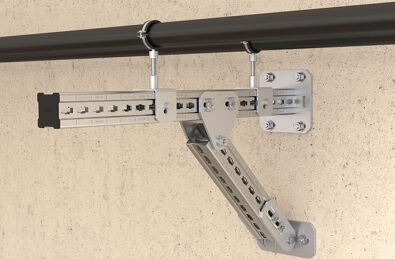

Supported structure with variable connectors

With joint connectors for profile connection FMVB-P and base plate FMVB-BP

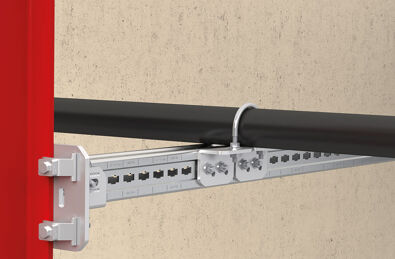

Fastening to the steel structure

With beam clamps FMBC M12 or M16 and FMSF saddle flanshes

Platform construction as roof elevating frame

3D-construction with FMA3 and FMA4 attachment brackets that can be attached to all four sides of the FMP massive profile

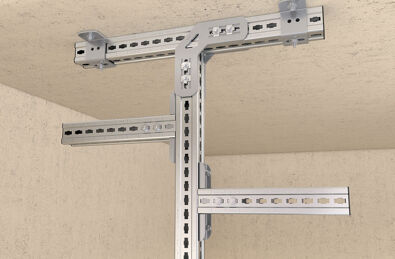

Hanging bracket – construction with base profile on the ceiling

With U-connectors FMUF 90, 120 and 160, fits massive profiles FMP 90, 120 and 160
