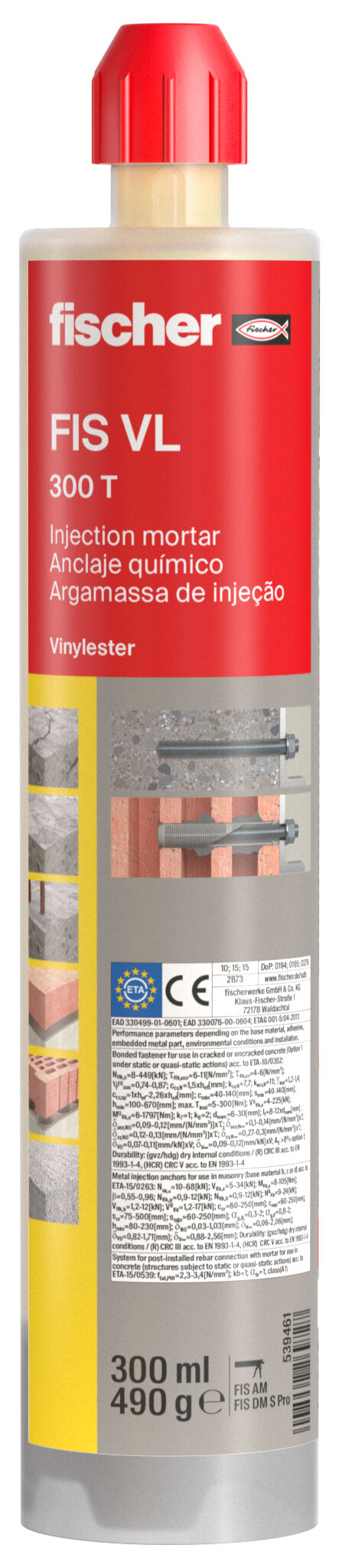

fischer injection mortar FIS VL 300 T

Art.-No. 539461
Top Features

Product Description

Advantages
  • The installation mortar is approved for standard applications in solid and perforated brick masonry and non-cracked concrete.
  • The proportion of cement in the installation mortar ensure good temperature resistance from -40°C to +80°C.
  • The range of accessories is ideally suited to the installation mortar and increases the great flexibility of the system for a wide range of applications.
  • The installation mortar 150 C and 300 T can be used with stable, standard silicone dispensers. No special equipment is required.

Application and Permission

Applications
  • Cable trays
  • Air conditioning units
  • Consoles
  • Gratings
  • Satellite antennas
Building materials
Approved for anchorings in:
  • Concrete C20/25 to C50/60, cracked and non-cracked
  • Hollow blocks made from lightweight concrete
  • Hollow blocks made from concrete
  • Vertically perforated brick
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Solid brick
  • Aerated concrete
Also suitable for:
  • Concrete C12/15
You can find detailed information on building materials in the registration document.

Permission

  • ETA-10/0352
  • ETA-15/0539, ETAG 001-5
  • DoP No. 0028
  • DoP No. 0028
  • DoP No. 0067
  • DoP No. 0067
  • DoP No. 0074
  • DoP No. 0074
  • DoP No. 0107
  • DoP No. 0107
  • GS 3.2/18-159-1-r1
  • 21909_1
For Details see corresponding Documents

Assembly Instruction

Functionality
  • The installation mortar is a 2-component injection mortar based on a vinyl ester hybrid concept.
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
  • The injection cartridges are quick and easy to use with the fischer dispensers.
  • Partially used cartridges can be reused by changing the static mixer.

Technical Data

Technical Data

ETA-approval
Contents 1 cartridge 300 ml, 2 x FIS MR Plus
GTIN (EAN-Code) 4048962269727
Legend   =  Permission Available

Documents for Downloading

Additional Documents

Approvals

Title Type Created Valid Till
ETA - European Technical Assessment (PDF, 3 MB) European Technical Assessment for Injection System fischer FIS VL for use in concrete ETA-10/0352 13/05/2020
ETA - European Technical Assessment (PDF, 3 MB) European Technical Assessment Rebar connection with fischer FIS VL ETA-15/0539, ETAG 001-5 27/08/2015
DOP - Declaration of Performance (PDF, 4 MB) DoP No. 0028 14/08/2015
DOP - Declaration of Performance (PDF, 4 MB) DoP No. 0028 14/08/2015
DOP - Declaration of Performance (PDF, 5 MB) DoP No. 0067 12/08/2015
DOP - Declaration of Performance (PDF, 5 MB) DoP No. 0067 12/08/2015
DOP - Declaration of Performance (PDF, 4 MB) Declaration of Performance Rebar connection with fischer FIS VL DoP No. 0074 25/09/2015
DOP - Declaration of Performance (PDF, 4 MB) Declaration of Performance Rebar connection with fischer FIS VL DoP No. 0074 25/09/2015
DOP - Declaration of Performance (PDF, 3 MB) DoP No. 0107 17/08/2017
DOP - Declaration of Performance (PDF, 3 MB) DoP No. 0107 17/08/2017
Test report (fire protection) (PDF, 2 MB) GS 3.2/18-159-1-r1 04/07/2018
Fire resistance of fischer injection system FIS VL in masonry (PDF, 579 KB) Fire resistance of fischer injection system FIS VL in masonry 21909_1 15/03/2019
