fischer Sanitary fixing set for injection systems FIS W M 10

Complete set for assembling wash basins in perforated brick masonry.

Art.-No. 503801
Top Features
  • It also holds securely in perforated brick masonry.
  • Complete set with threaded rod, anchor sleeve, flanged bushes, and hexagon nut.
  • Co-ordinated components.

Product Description

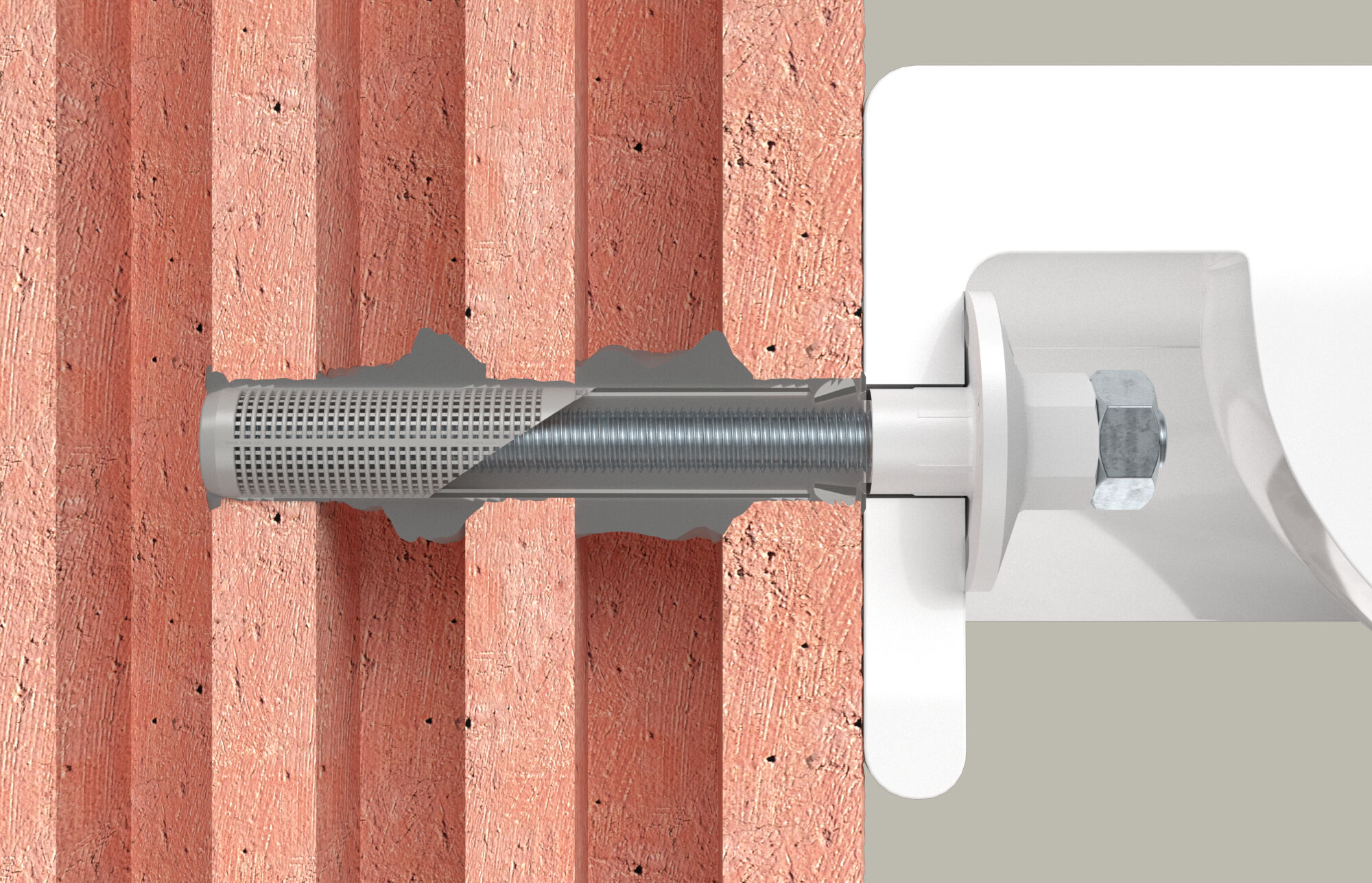

The fischer sanitary fixing set for injection system FIS W M 10 K is a complete set for fixing a wash basin in perforated brick masonry. Only the fischer high-performance mortar FIS V is required for assembly. To do so, the anchor sleeve is placed in the drill hole, and filled with fischer injection mortar from the anchor sleeve base. When inserting the rod anchor, the mortar is pressed through the lattice structure of the anchor sleeve and then connects with the perforated brick by an interlock. This means that the load is directed into the building material. This means that the wash basin is also held securely in perforated brick.
Advantages
  • The threaded rod FIS GS is the cost-effective solution for applications with injection mortars where no approval is required.

Application and Permission

Applications
  • Anchorings with injection mortars without approval
Building materials
Depending on the used injection mortar suitable for:
  • Concrete
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Solid brick
  • Vertically perforated brick
  • Hollow blocks made from lightweight concrete
  • Hollow blocks made from concrete
  • Aerated concrete blocks
  • Solid and lightweight concrete blocks
  • Solid pumice and other solid building materials
  • Hollow pumice slabs
  • Slabs made of hollow brick and other perforated brick
You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality
  • The threaded rod FIS GS is suitable for pre-installation and push-through installation.
  • The threaded rod FIS GS is manually inserted into the drill hole with a slight rotating movement until it reaches the base of the hole.

Technical Data

Technical Data

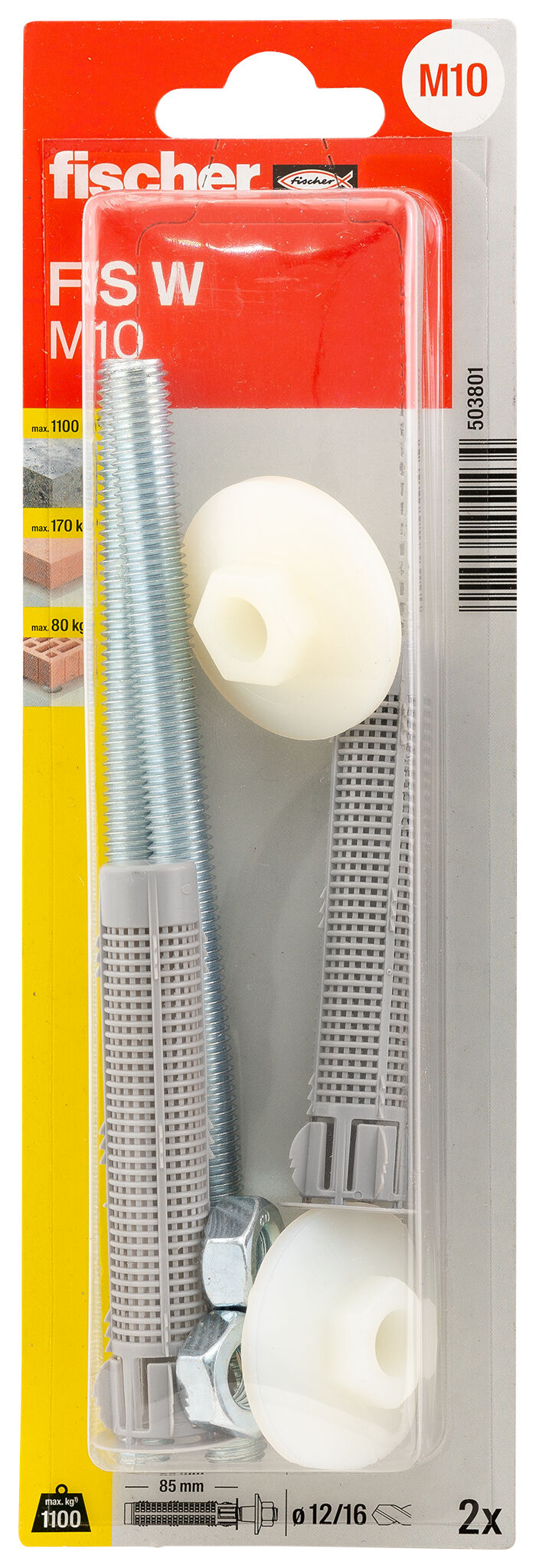

Contents 2 x threaded rod M 10 x 165, 2 x anchor sleeve (plastic) 16 x 85, 2 x flanged nut BDH M 10
Packaging Blister card
Amount 2 [pcs.]
GTIN (EAN-Code) 4048962059434
